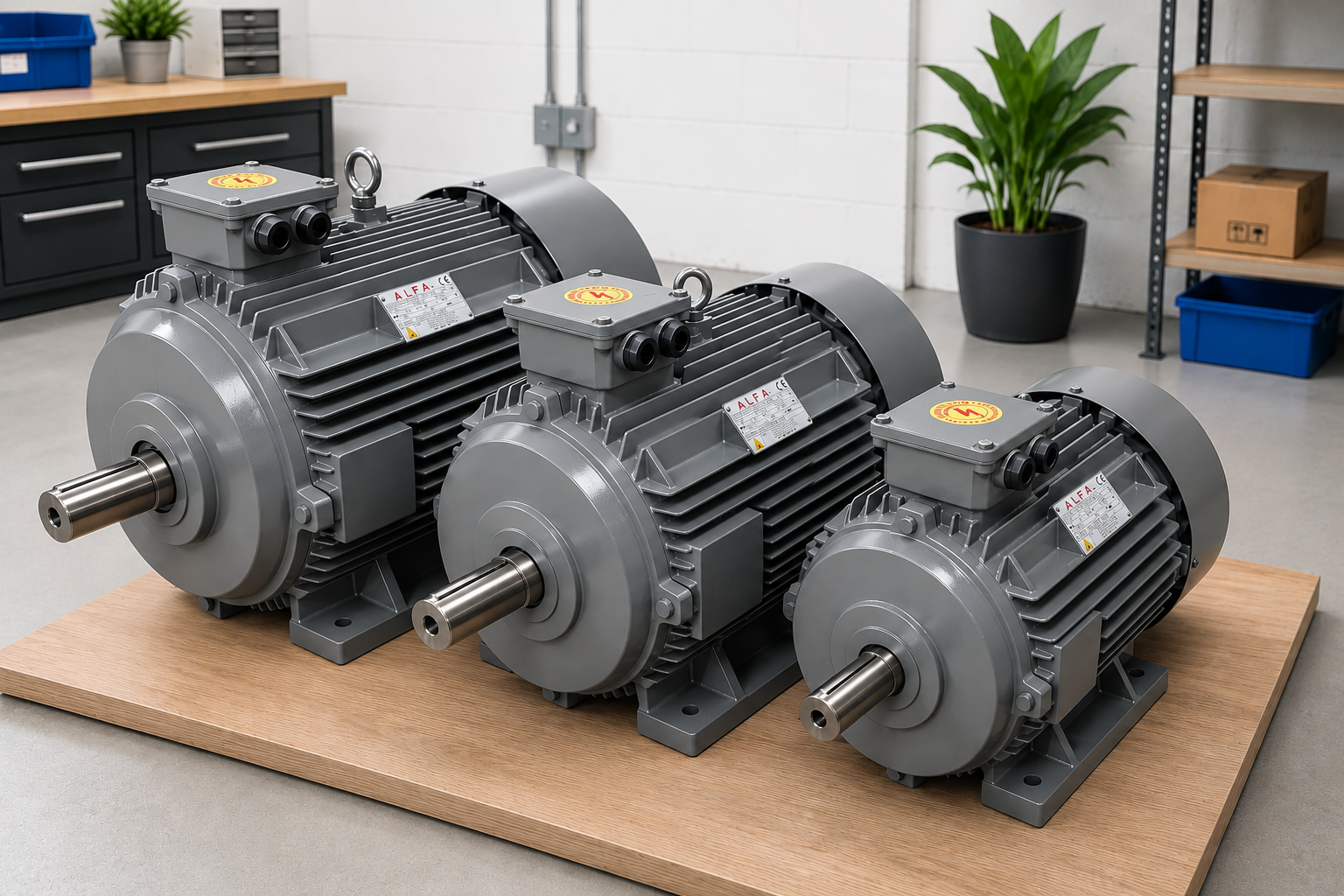

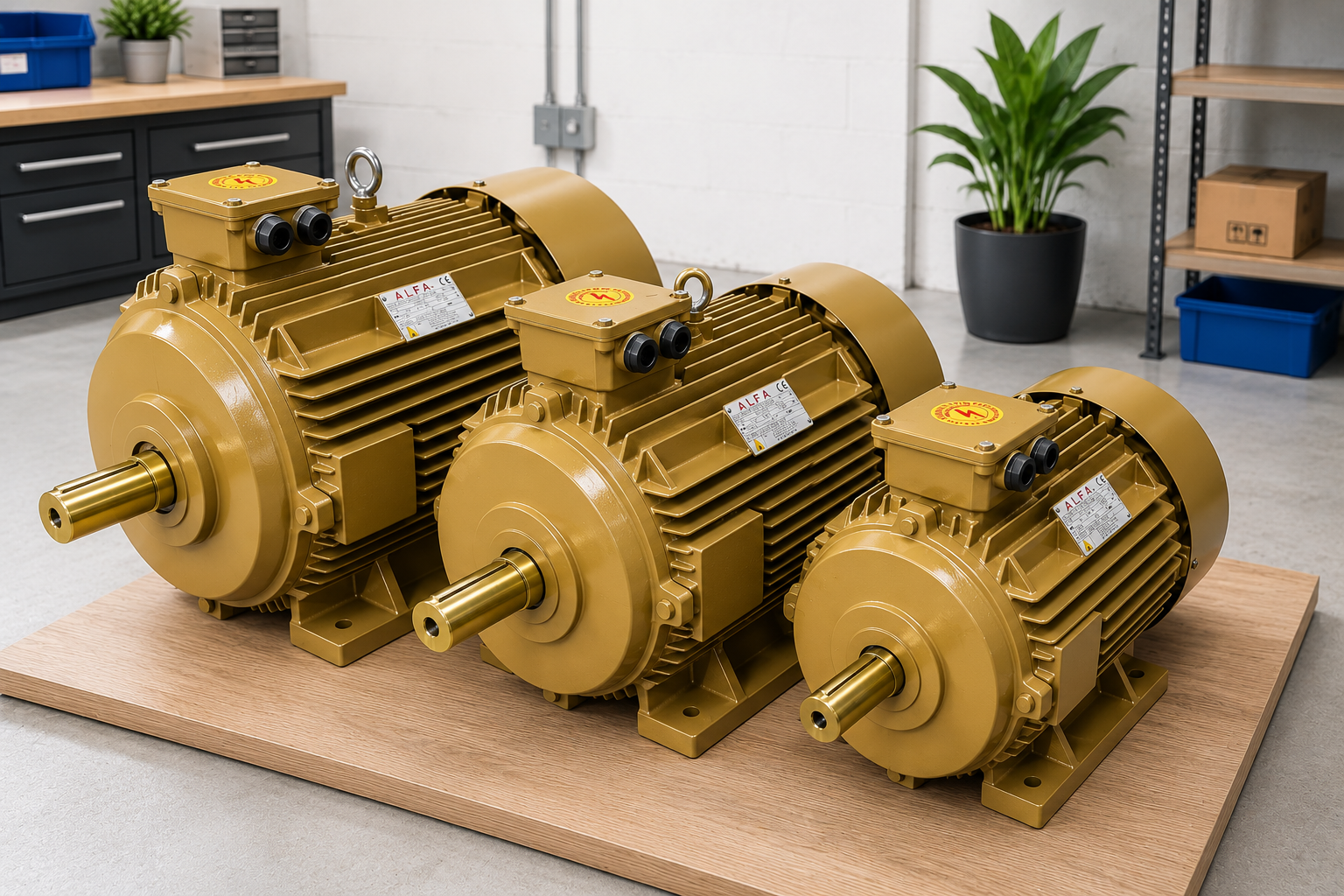

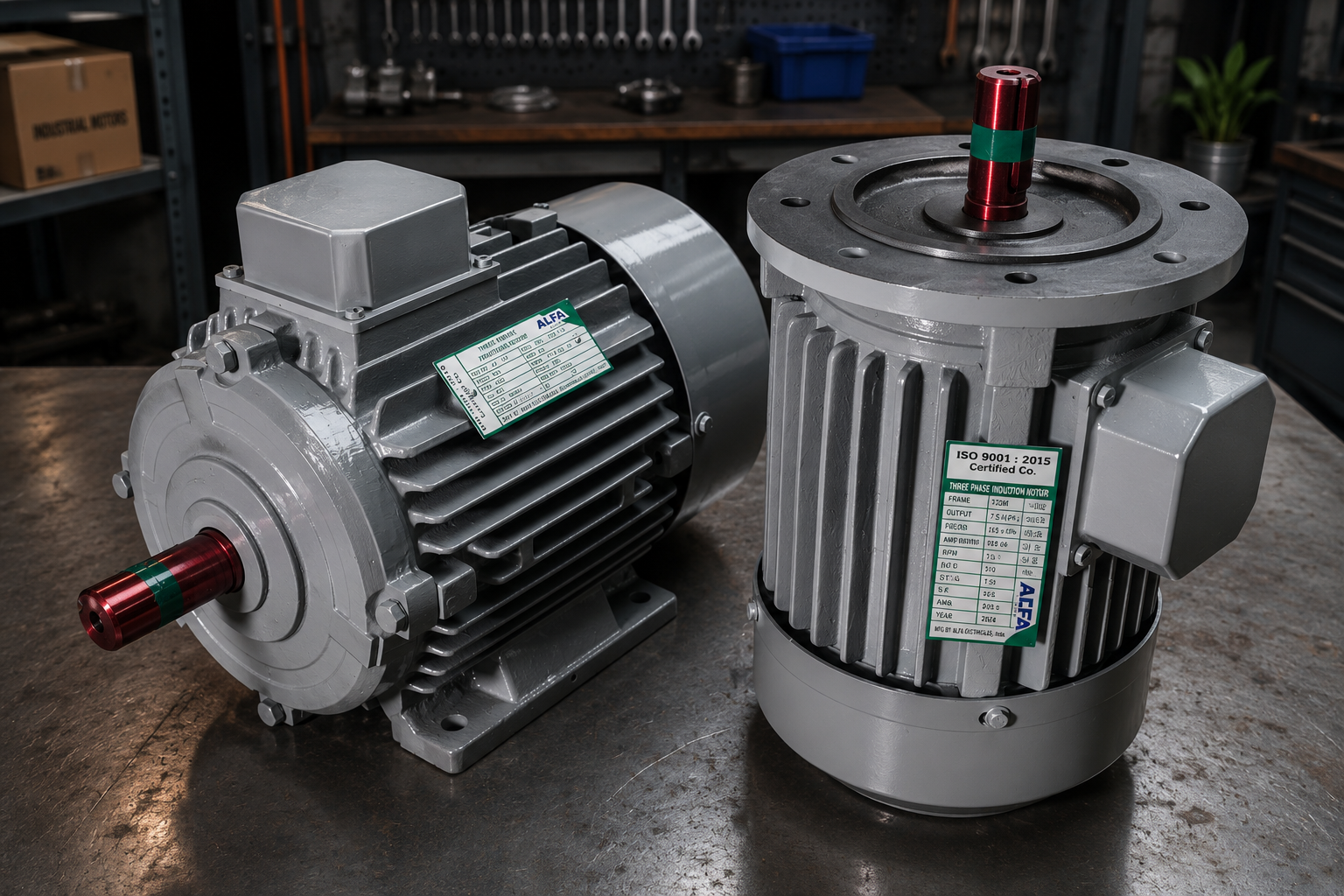

Three Phase AC Induction Motors

We are one of the leading manufacturer, exporter and supplier of optimum range of Three Phase Induction Motors. Offered motors are having wide range of Industrial applications like Hydraulic Power Press, Air-Compressors and many other machines. Our motors are well manufactured using best grade components and modern technology in synchronization with the set international standards.

Manufacturing & Testing Standards:

  • Designed As Per IEC 34-7
  • Testing - Meets Requirements of Is 325, Is 12615, Is 1231 & Is 2223
  • Cooling & Ventilation - Cooling As Per Is 6362. High Air Flow External Bidirectional Polypropylene Fans assure Low Temperature Rise To Give An Extended Life To Motor. Fan Cowls Are Suitable Gauge Pressed Steel Construction, Securely Bolted To End shield of Motor-Body
  • Rotor - Core of Insulated Lamination with A High Pressure Die-Cast Aluminum Cage. The Whole Rotor Assembly Is Dynamically Balance To Ensure Quiet & Vibration Free Operation. Surface To Rotor Is Protected By An Anti Corrosion Coating

Product Range:

  1. 0.5 HP to 40 HP
  2. Voltage - 415 Volts +/- 10%
  3. Frequency - 50 Hz +/- 5%
  4. Insulation Class - 'F' (Temperature Rise Limited To Class 'B')
  5. Ambient Temp. - 45 'C
  6. Altitude - 1000 Mtrs
  7. Protection - IP 44, IP 55 or As Requested
  8. Mountings - B3-Foot, B5-Flange, B14-Face

Construction Features:

  1. Motor Body And End-Covers From Frame Sizes 71 To 180 L Made From Ci Fg: 200 As Standard
  2. Motor Body And End-Covers From Frame Sizes 71 To 90 L Made From Aluminum Pressure Die-Cast
  3. This Motors Give High Starting Torque, Cool And Robust With High Overload, Suits To Applications Such As
  4. Air-Compressors, Pumps, Fans, Medical Apparatus And Instruments, And Many Other Machines
  5. The Wound Stators Are Dully Vacuum Impregnated
  6. Standard Synthetic Enamel Paint Is Provided. Special Paint Can Be Provided On Request.
